Complete Guide to Garden Drainage Systems in Oman
Quick Answer
The best garden drainage systems in Oman include French drains, surface channel drains, subsurface perforated pipe systems, and dry wells — chosen based on your garden's soil type, slope, and water volume. For most Muscat villa gardens, a combination of French drains and surface grading provides the most effective, long-lasting drainage solution while protecting plants, lawns, and villa foundations from water damage.
Garden drainage systems in Oman are not optional — they're essential. From the seasonal downpours that sweep through Muscat in winter to the unexpected flash floods that can overwhelm even well-maintained villa gardens, poor water management is one of the most damaging and overlooked problems in residential landscaping across Oman.
Many homeowners in Muscat — particularly in villa communities like Al Mouj, Muscat Hills, and The Wave — discover the problem only after it's caused damage: a waterlogged lawn, yellow and dying plants, eroded soil, or in serious cases, water seeping toward villa foundations. By then, the cost of repair far exceeds what a professionally designed drainage system would have cost from the start.
This guide covers everything you need to know about landscape drainage systems in Oman — from understanding the different drainage types and how they work, to choosing the right solution for your specific garden, and knowing when to call in professional help. Whether you're building a new garden or solving an existing drainage problem, this is the resource you need.
"Good garden drainage isn't visible when it's working — you only notice it when it's missing. In Oman's climate, that's a risk no villa garden should take."
01 — What Is a Garden Drainage System?
A garden drainage system is a network of structures, channels, pipes, and materials designed to collect, redirect, and safely remove excess water from your garden. Its job is to prevent water from accumulating on the surface or in the soil where it can damage plants, erode landscaping, and threaten built structures.
Drainage systems work by channelling water away from problem areas — either to a designated drainage point, a street stormwater system, or a soakaway that allows slow absorption into deeper soil layers. A well-designed system is invisible when it's working correctly; you'll only notice it during heavy rainfall when your garden stays perfectly functional while your neighbour's floods.
The key benefits of a properly installed garden drainage system include healthier plant growth, a stable lawn surface, protection from soil erosion, and long-term preservation of your villa's foundation and hardscaping investment.
Quick Tip
A drainage system doesn't just protect your garden — it protects your entire property. Water that pools near villa walls and foundations causes subsidence, damp, and structural damage that costs far more to fix than the drainage system itself.
02 — Why Garden Drainage Is Important in Oman
Oman's climate creates unique drainage challenges that homeowners in temperate countries rarely face. The combination of hard, compacted, or clay-heavy soils common across Muscat — together with intense but short seasonal rainfall events — means water has nowhere to go quickly. Instead, it sits on the surface, penetrates shallow root zones, and gradually works its way toward hardscaping and structures.
During Oman's winter rainfall season, even a single heavy storm can dump significant amounts of water in a short period. On undrained garden surfaces, this water pools, saturates the soil, and begins causing damage within hours. For luxury villa gardens in Muscat — where expensive landscaping, mature trees, and premium hardscaping represent a significant investment — the financial cost of poor drainage can be substantial.
Beyond rainfall, Oman's intense summer irrigation demands also require good drainage. Over-irrigation — a common problem in automated garden systems — leads to the same waterlogging and root rot issues as storm water, just more slowly. Good drainage and smart irrigation work together as a complete water management system for your garden.
Local Muscat Insight
In Muscat villa communities like Al Mouj and Muscat Hills, property management teams increasingly require residents to have adequate garden drainage systems in place. Water runoff that floods neighbouring properties or community pathways is a growing concern — and a preventable one with the right drainage design.

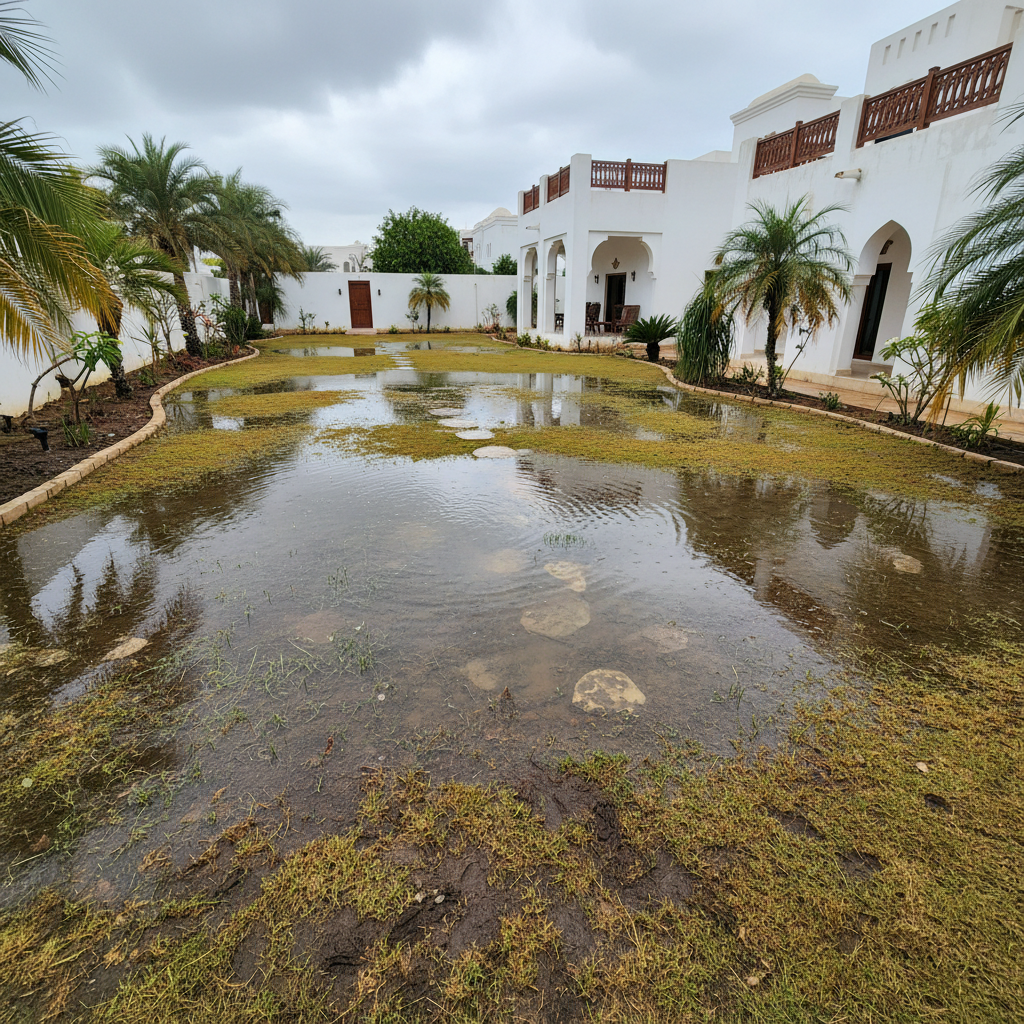

03 — Common Garden Drainage Problems
Poor drainage causes multiple compounding problems — from surface flooding to deep root damage.
Understanding the specific drainage problems affecting your garden is the first step to choosing the right solution. Here are the most common issues in Omani gardens and their real-world impact:
| Problem | Impact on Garden & Property |
|---|---|
| Standing Water | Suffocates grass and plant roots; creates mosquito breeding grounds; damages lawn surface |
| Soil Erosion | Washes away topsoil, mulch, and fertiliser; exposes roots; creates uneven surfaces |
| Root Rot | Kills plants and trees by depriving roots of oxygen; expensive to reverse |
| Lawn Damage | Creates bare, muddy patches; reduces lawn health; increases maintenance costs |
| Foundation Issues | Water near villa walls causes damp, subsidence, and long-term structural damage |
| Hardscape Damage | Pooled water under paving causes cracking, lifting, and premature deterioration |
| Moss & Algae Growth | Thrives in damp conditions; makes surfaces slippery; damages plant health |
04 — Types of Garden Drainage Systems
No single drainage system suits every garden. The best solution depends on your garden's specific conditions — soil type, slope, rainfall exposure, and the nature of the water problem. Here are the main types used in Omani residential landscaping:
Surface Drainage
How it works: Uses the natural slope of the land combined with channels, swales, and grading to direct water across the surface and away from the garden.
Advantages: Low cost, low maintenance, effective for moderate rainfall, visually integrates with garden design.
Best for: Gently sloped gardens, open lawn areas, properties with clear drainage outlets nearby.
French Drains
How it works: A gravel-filled trench with a perforated pipe collects subsurface water and channels it to a designated outlet or soakaway.
Advantages: Highly effective for waterlogged soil, invisible when installed, handles large water volumes, long lifespan.
Best for: Heavy clay soils, areas with persistent standing water, near villa foundations and retaining walls.
Channel Drains
How it works: Linear grates installed at surface level collect surface water and direct it to underground drainage pipes.
Advantages: Aesthetically clean, handles concentrated surface flow, available in decorative styles.
Best for: Driveways, patios, pool surrounds, and areas with heavy paving.
Trench Drains
How it works: Wider channel systems designed for high-volume water capture, typically installed at the base of slopes or at garden boundaries.
Advantages: High capacity, handles flash flood volumes, suitable for large gardens.
Best for: Large villa gardens with significant slope, areas prone to flash flooding during Muscat storms.
Dry Wells
How it works: Underground chambers filled with gravel that temporarily hold excess water and allow slow percolation into surrounding soil.
Advantages: No outlet pipe needed, sustainable water recycling, effective for moderate volumes.
Best for: Gardens with permeable soil, areas where drainage outlets are limited.
Catch Basins
How it works: Underground basins with grated surface inlets that collect water and connect to drainage pipe networks.
Advantages: Captures debris before it enters pipe systems, low maintenance, effective in low-lying areas.
Best for: Low points in the garden where water naturally collects; alongside driveways and lawns.

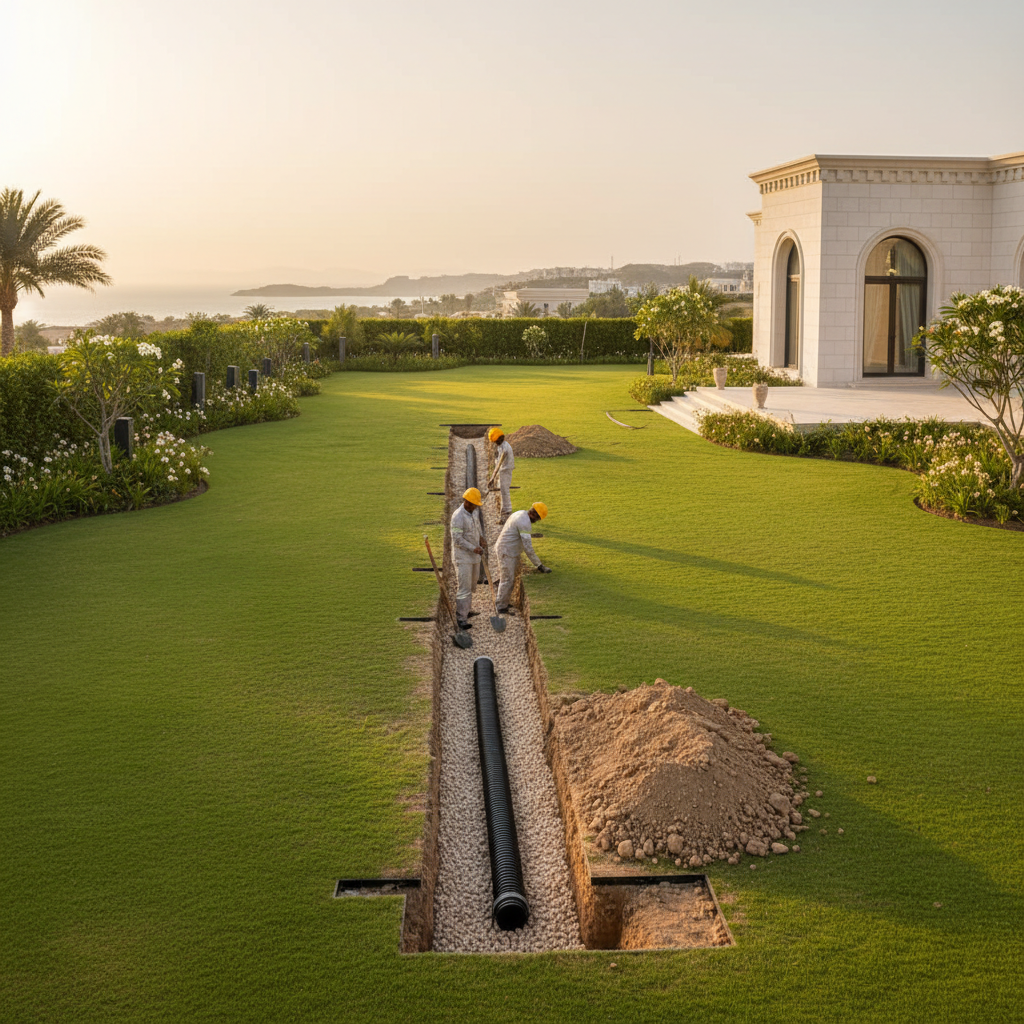

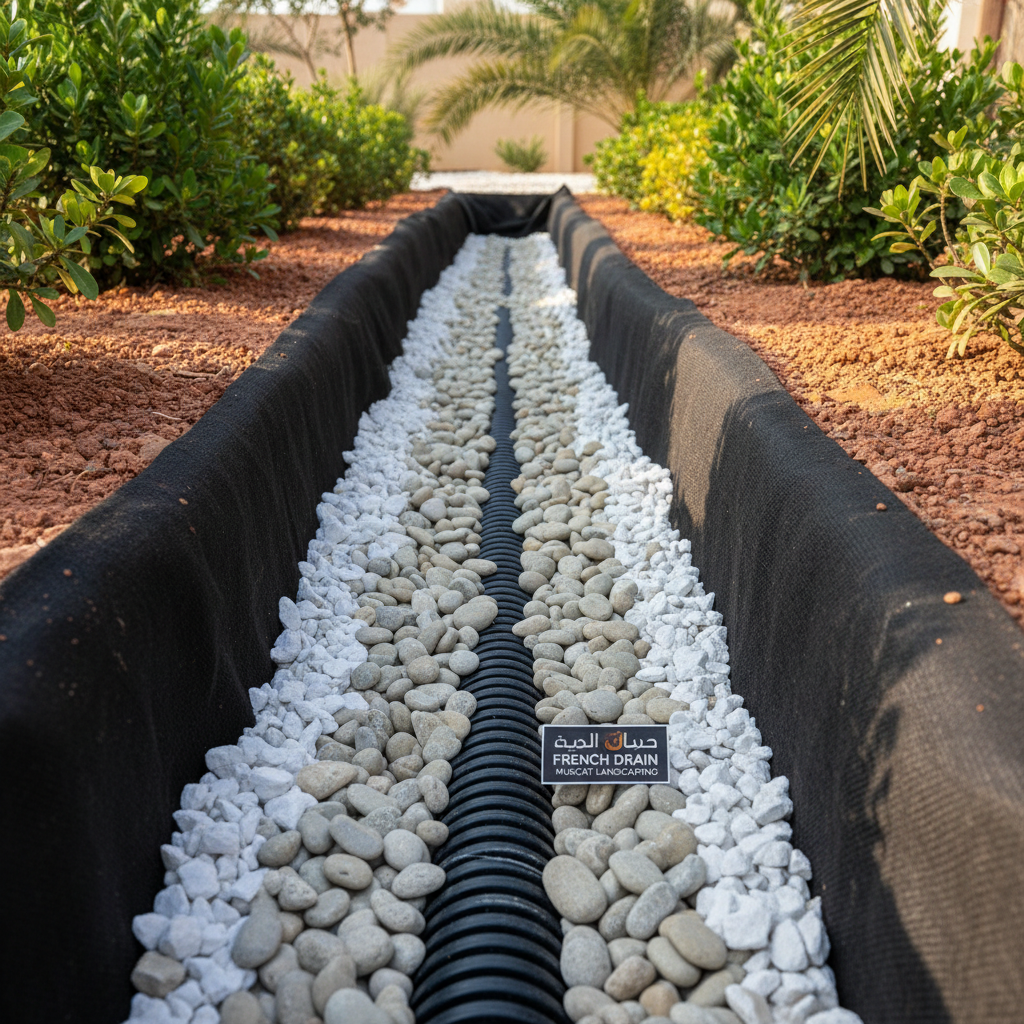

05 — French Drains Explained
A French drain — the most effective subsurface drainage solution for Muscat villa gardens.
A French drain is one of the most reliable and widely used garden drainage solutions in Oman. Despite the name, it's a simple concept: a gravel-filled trench with a perforated pipe at the bottom that intercepts groundwater and surface water, channelling it away from problem areas.
How it works: Water enters the trench through the gaps in the gravel and perforations in the pipe. Gravity pulls it along the pipe's slope to a discharge point — either a storm drain, a soakaway, or a dry well. The gravel filters out debris, preventing pipe blockages and ensuring the system remains effective for years.
Installation process: A trench is dug to the required depth (typically 30–60cm for residential gardens in Muscat), lined with geotextile fabric to prevent soil ingress, filled with coarse gravel, and fitted with a perforated pipe before being topped with more gravel and covered. The entire system sits below the surface, leaving your garden looking completely natural.
French drains are particularly effective in Omani gardens with compacted soils or clay layers that prevent natural water percolation. They're the go-to solution for areas near villa foundations, retaining walls, and mature planting beds where persistent waterlogging causes long-term damage.
Pro Tip
Always wrap your French drain's gravel and pipe in high-quality geotextile landscape fabric. In Oman's fine, dusty soils, fabric-free installations silt up within 2–3 years and lose effectiveness. The right fabric extends system life to 20+ years with minimal maintenance.

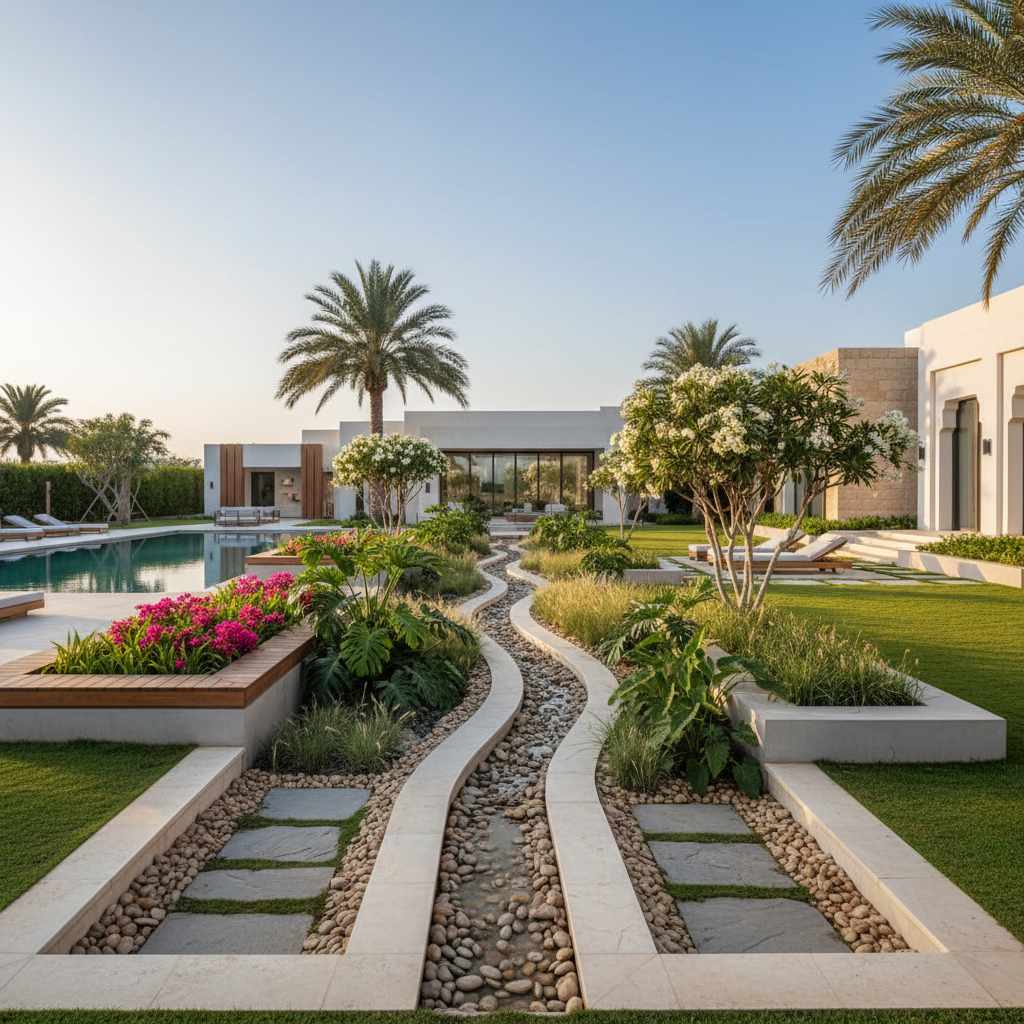

06 — Surface Drainage Solutions
Well-designed surface drainage channels can be both functional and visually attractive.
Surface drainage works with the natural contours of your garden to move water efficiently across the ground and away from problem areas. When designed well, surface drainage becomes an invisible and maintenance-free part of your landscape.
- •Garden Grading: Reshaping the ground surface to create a consistent fall (typically 1–2% slope) away from the villa and toward drainage points. This is the foundation of effective surface drainage and should be incorporated into every garden design in Oman.
- •Swales: Shallow, gently sloped channels lined with grass or gravel that collect and direct surface water. Swales integrate naturally into garden layouts and can double as attractive landscape features when planted with moisture-tolerant species.
- •Drainage Channels: Concrete or stone-lined channels that collect and carry larger volumes of surface water to outlets. Essential at the boundaries of driveways, patios, and hardscaped areas in Muscat villas.
- •Decorative Drainage: Modern drainage grates and channels designed to complement premium landscape aesthetics. Available in stainless steel, powder-coated aluminium, and natural stone finishes that suit luxury villa gardens in Oman.

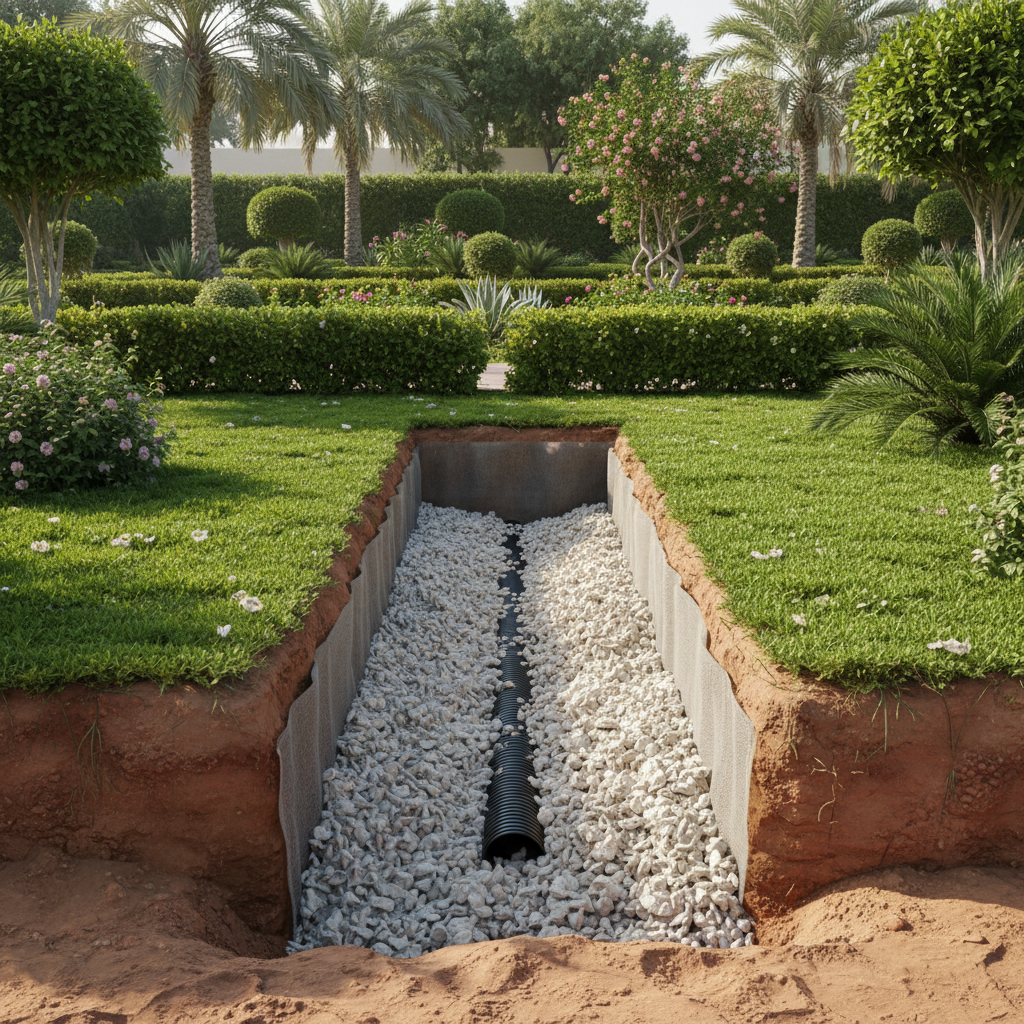

07 — Subsurface Drainage Systems
Subsurface systems work invisibly below the garden surface to manage excess soil moisture.
Subsurface drainage systems manage water that has already entered the soil profile. They're the solution for gardens where surface drainage alone isn't enough — particularly in Muscat villas built on heavy, poorly draining soils.
Perforated pipe networks are the backbone of subsurface drainage. Installed at 30–90cm depth depending on root zones and soil conditions, these pipes intercept groundwater moving through the soil and redirect it to a safe outlet. In larger gardens, a herringbone or grid pipe layout ensures comprehensive coverage of the entire root zone.
Gravel trenches without pipes can be used as simpler alternatives in smaller areas or where outlet connections are limited. Gravel-filled trenches break up compacted soil layers, create drainage pathways, and improve overall soil aeration — directly benefiting plant root health.
Subsurface systems are ideal applications include: sports-quality lawns in Muscat villas, planting beds with valuable specimen trees, areas adjacent to swimming pool surrounds, and any garden zone where persistent soil moisture is causing plant decline.

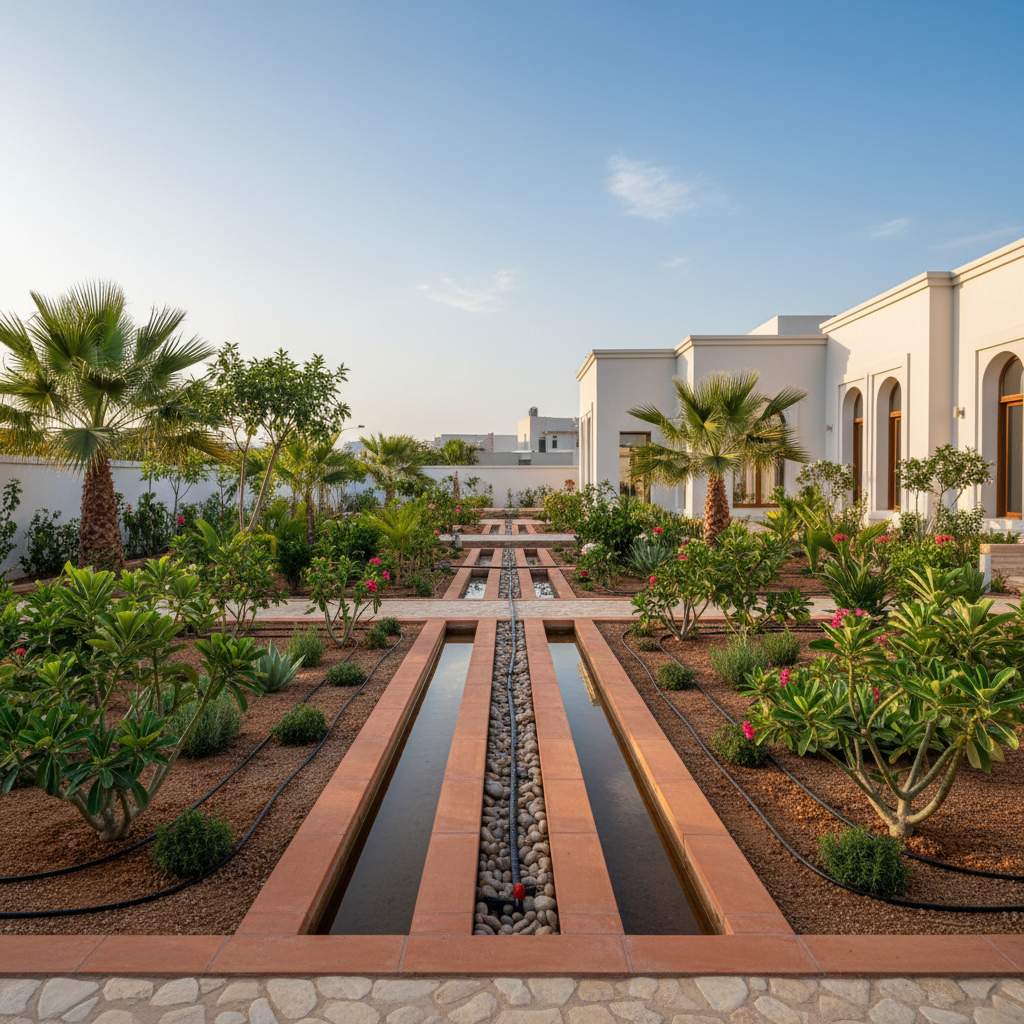

08 — Drainage and Irrigation: Finding the Right Balance
Drainage and irrigation are two sides of the same water management system — both are essential.
Garden drainage and irrigation are often treated as separate systems, but in Oman's climate, they need to be designed together. Too much water — from over-irrigation or rainfall — is just as damaging as too little. A garden with excellent irrigation but poor drainage will develop root rot, fungal disease, and soil compaction over time.
Smart irrigation controllers with soil moisture sensors prevent over-watering by only activating irrigation when the soil genuinely needs it. Paired with a well-designed drainage system that removes any excess quickly, this combination creates the ideal growing conditions for every plant in your Muscat garden.
| Aspect | Drainage Role | Irrigation Role |
|---|---|---|
| Water Input | Removes excess rainfall & irrigation runoff | Delivers precise water volumes to root zones |
| Soil Moisture | Prevents waterlogging and anaerobic conditions | Maintains consistent moisture for healthy growth |
| Plant Health | Protects roots from rot and oxygen deprivation | Provides hydration during Oman's dry seasons |
| Water Waste | Captures and redirects excess water sustainably | Smart systems reduce over-watering by 40–60% |
| Infrastructure | Protects foundations, paving, and walls | Feeds plants without saturating surrounding areas |
Expert Advice
In Oman's summer months, over-irrigation is the number one cause of drainage-related garden problems. If your garden needs drainage improvements, simultaneously audit your irrigation schedule — reducing watering frequency by 20–30% often resolves minor drainage issues without any structural work.
09 — How to Choose the Best Garden Drainage System in Oman
Choosing the right garden drainage system doesn't need to be complicated. Follow this five-step process to identify the most effective solution for your specific garden in Muscat:
Step 1: Assess the Problem
Walk your garden during or immediately after heavy rainfall. Note exactly where water pools, how long it takes to drain, and which areas show signs of long-term waterlogging (yellow grass, bare soil, moss). This assessment tells you where drainage is needed most urgently.
Step 2: Evaluate Soil Type
Dig a test hole 30cm deep and fill it with water. If it drains in under an hour, your soil is permeable enough for surface solutions. If water remains for 2–4 hours or longer, you have drainage-restricting clay or compaction that requires subsurface intervention.
Step 3: Consider Landscape Design
Your drainage solution must complement your garden's aesthetic and not disrupt existing planting, trees, or hardscaping. French drains and subsurface systems are ideal where visual impact matters. Surface solutions work well in open, informal garden areas.
Step 4: Select the Right Drainage Solution
Match the solution to the problem: surface water pooling → grading and surface channels; soil waterlogging → French drains or perforated pipes; high water volume → trench drains and catch basins; isolated low points → dry wells or catch basins.
Step 5: Plan for Maintenance
Every drainage system needs periodic attention. Build a maintenance schedule into your plan — annual checks for French drain outlets, clearing of surface grates after storms, and inspection of pipe connections every 2–3 years ensures your system performs reliably for decades.
10 — Common Drainage Mistakes to Avoid
These are the most costly and common drainage errors made in Omani garden projects — and exactly how to avoid each one:
Skipping a proper site assessment before installation
Always assess water flow patterns across the entire garden before selecting or installing any drainage system
Installing drainage without considering the discharge point
Every drainage system needs a safe, legal outlet — never redirect water onto neighbouring properties or public pathways
Using undersized pipes that block after the first heavy rainfall
Size drainage pipes for peak flow, not average conditions — in Oman, design for flash flood volumes
Omitting geotextile fabric from French drain installations
Always wrap French drain gravel in quality landscape fabric to prevent silting and maintain long-term performance
Installing drainage at insufficient depth
Shallow drains freeze soil near the surface and miss the root zones where waterlogging causes most damage
Neglecting surface grading as part of the drainage plan
Ground slope is the first line of defence — even 1–2% grading away from structures significantly reduces drainage load
Connecting drainage to irrigation without isolation valves
Drainage and irrigation pipe networks should be separate systems — cross-connections cause blockages and contamination
Ignoring drainage near villa foundations and walls
Foundation drainage is the most critical area — waterlogged soil near structures causes expensive long-term damage
Using crushed concrete or recycled fill instead of proper drainage gravel
Use clean, angular drainage gravel (20–40mm) — fines-free to maintain permeability and prevent pipe blockages
Installing drainage without planning for future access
Include inspection chambers and cleanout points at key junctions so the system can be checked and cleared without excavation
Assuming the problem is solved without testing after installation
Test every drainage system during the next rainfall event — confirm water moves correctly before completing landscaping over it
11 — Signs Your Garden Needs Better Drainage
Some drainage problems are obvious; others develop slowly and go unnoticed until they've caused significant damage. Check your garden against this list — if you can identify two or more of these signs, it's time to act:
Water pooling on the lawn 24+ hours after rainfall
HighYellowing or dying plants in specific garden zones
HighFoul or musty odours from soil or lawn areas
MediumMoss, algae, or fungal growth on soil surface
MediumPersistent muddy or spongy areas underfoot
HighSoil erosion or exposed plant roots after rain
MediumCracks, heaving, or discolouration on villa walls
CriticalLawn grass thinning in low-lying or shaded areas
MediumGarden paving lifting or cracking without impact
HighIrrigation system water not absorbed within 30 min
Low12 — Professional Garden Drainage Solutions

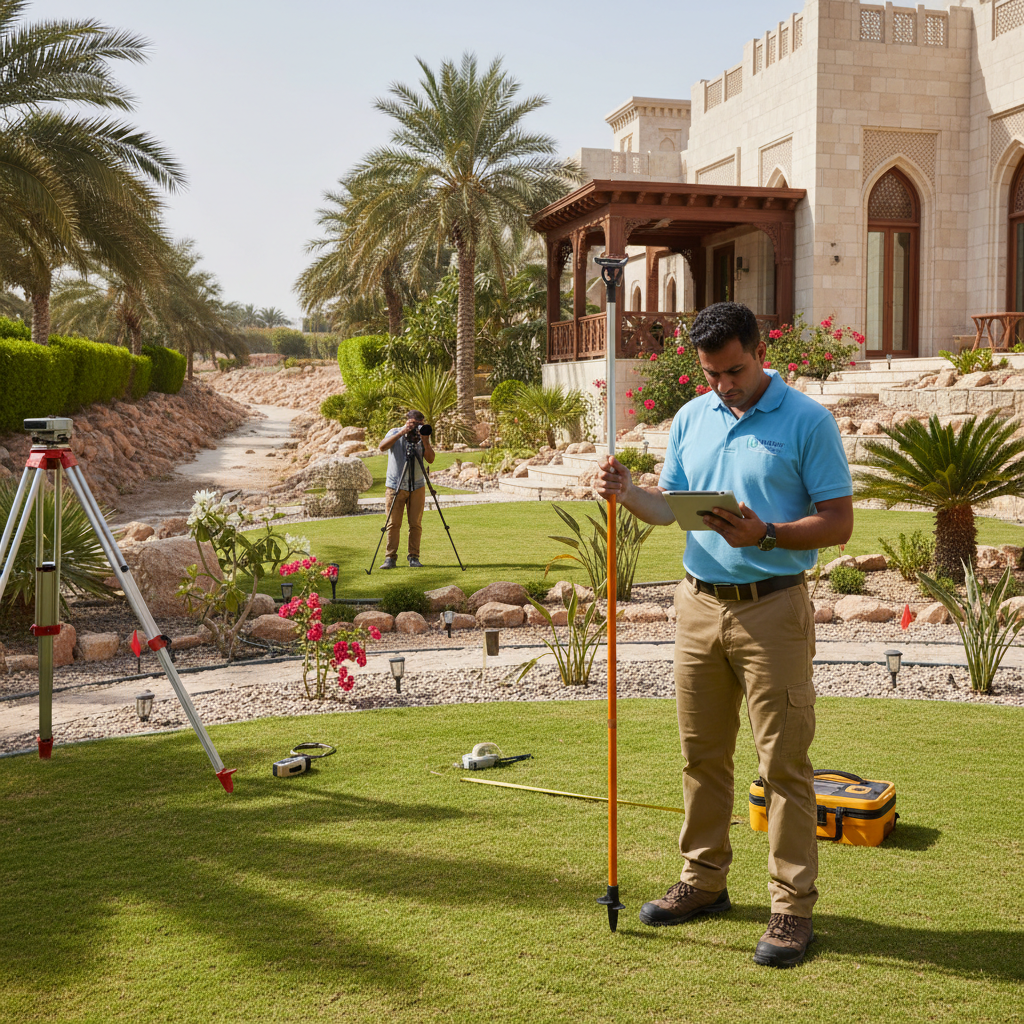

A professional site assessment is the foundation of every effective drainage solution.
Garden drainage systems might seem straightforward, but getting them wrong is expensive. An incorrectly graded garden, undersized pipes, or a poorly placed discharge point can make drainage problems worse — or create new ones. Professional landscaping services bring the expertise, equipment, and experience to get it right first time.
Site Assessment
Comprehensive evaluation of water flow patterns, soil permeability, existing drainage, plant health indicators, and structural risk areas — including villa foundations and walls.
Drainage Design
A scaled drainage plan that integrates with your landscape design — specifying pipe sizes, depths, discharge points, and the most appropriate drainage system types for your specific garden conditions.
Professional Installation
Correct excavation, pipe laying, gravel selection, fabric installation, and surface reinstatement — with all connections tested before the garden is restored. No guesswork, no shortcuts.
Ongoing Maintenance
Regular inspection of outlets, grates, and inspection chambers; clearing of seasonal debris; system performance checks after major rainfall events — keeping your drainage effective year-round.
For villa gardens in Muscat and across Oman, professional drainage installation is not just about solving an existing problem — it's about protecting the long-term value of your entire landscaping investment. A correctly designed and installed system will function effectively for 20–30 years with minimal maintenance.

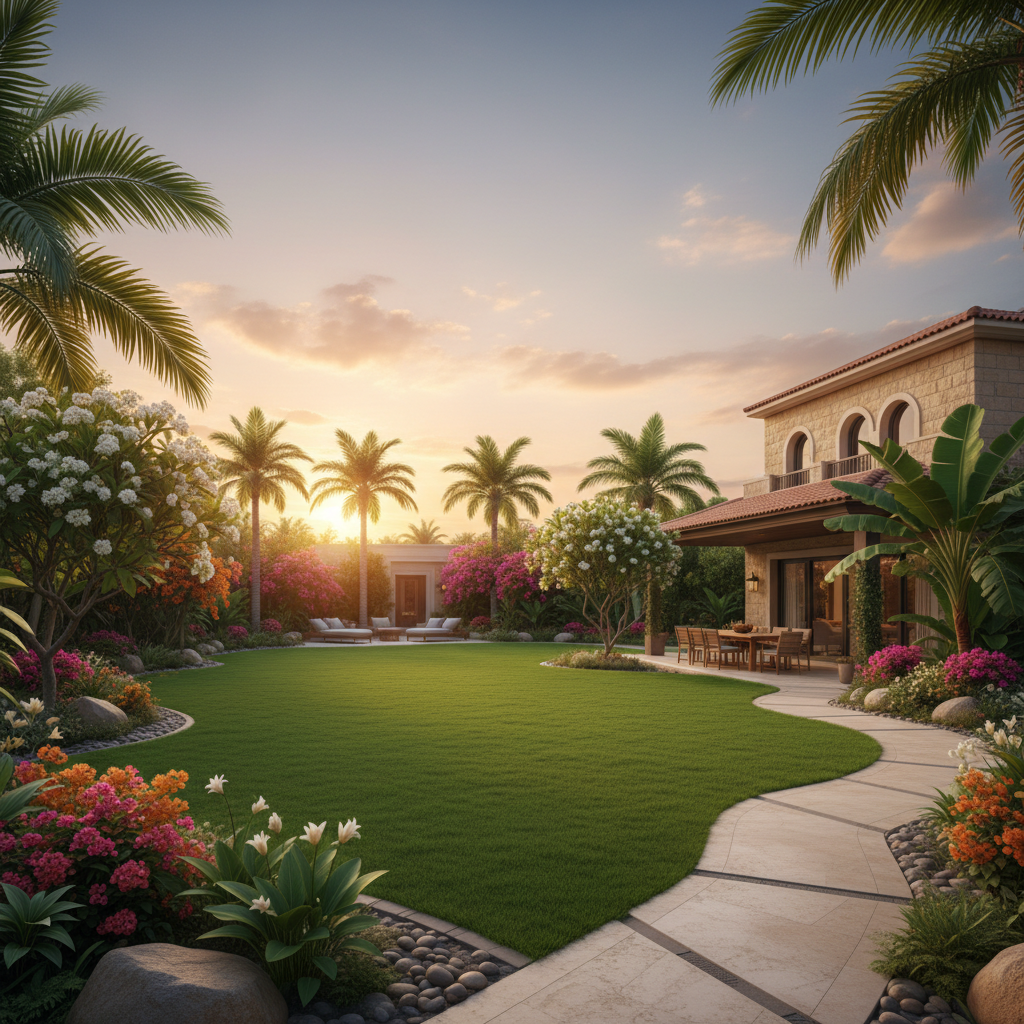

The result of professional drainage installation — a healthy, fully functional villa garden in Muscat.
Frequently Asked Questions
What is the best drainage system for gardens in Oman?
For most Muscat villa gardens, a combination of French drains for subsurface waterlogging and surface channel drains for paved areas provides the most complete solution. The best system always depends on your specific soil type, garden size, and the nature of the water problem.
How do I stop water from collecting in my garden?
Start with surface grading to direct water away from problem areas. For persistent pooling, install a French drain or surface channel drain at the lowest point. Ensure your irrigation system isn't over-watering, and check that no hardscaping is directing runoff into garden beds.
What is a French drain and how does it work?
A French drain is a gravel-filled trench with a perforated pipe that intercepts subsurface water and channels it away. Water enters through perforations in the pipe, travels by gravity to a discharge point, and exits safely. It's the most effective solution for waterlogged soil in Omani villa gardens.
Can drainage systems protect villa foundations in Oman?
Yes — foundation drainage is one of the most important applications. Water that saturates soil near villa walls causes damp penetration, subsidence, and long-term structural damage. A properly installed French drain or channel drain around the property perimeter keeps foundations dry and protected.
How much does garden drainage installation cost in Oman?
Costs vary with garden size and system complexity. Basic surface drainage grading starts from 300–600 OMR. French drain installation typically costs 800–2,500 OMR for a standard villa garden. Comprehensive drainage systems for large gardens with multiple zones can range from 3,000–8,000+ OMR. A professional assessment gives you an accurate project cost.
What causes poor garden drainage in Muscat?
The main causes are clay-heavy or compacted soils that resist water absorption, flat garden profiles without adequate slope, over-irrigation creating artificial waterlogging, and hardscaping that redirects rainfall into planted areas. Flash flooding during Oman's winter storms can overwhelm even adequately designed gardens.
Do all gardens in Oman need drainage systems?
Not every garden needs structural drainage, but every garden needs a drainage plan. Sandy, well-draining soils may only need correct surface grading. Clay-heavy soils, low-lying gardens, and properties near wadis or high flood-risk areas always benefit from proper drainage system installation.
How often should garden drainage systems be maintained?
Annual maintenance is recommended as a minimum: clear all drainage grates and outlets, flush French drain pipes, inspect catch basin chambers, and check for any soil subsidence over buried pipes. After major storm events, a post-storm check ensures everything is flowing correctly.
Can I install garden drainage myself in Oman?
Simple surface grading and swales can be DIY projects for experienced gardeners. However, French drains, subsurface pipe networks, and drainage systems near structures require professional design and installation — incorrect gradient, pipe sizing, or discharge planning creates problems worse than the original.
How long does professional garden drainage installation take?
A standard French drain installation for a typical Muscat villa garden takes 1–3 days. More comprehensive subsurface drainage networks covering large gardens typically take 3–7 days. Timeline depends on garden access, soil conditions, and the distance to the drainage outlet.
Final Thoughts
Garden drainage systems in Oman are one of those investments that you barely notice when they're working — and wish you'd made sooner when they're not. The combination of Oman's seasonal rainfall, compacted soils, and intensive irrigation demands makes drainage design an essential part of any serious landscaping project in Muscat and across the region.
The right landscape drainage system protects your plants, your lawn, your hardscaping, and your villa's foundations simultaneously. Whether you need a simple French drain to address a localised waterlogging problem, a comprehensive subsurface network for a large villa garden, or a complete drainage-and-irrigation system designed from scratch, the principles are the same: assess carefully, design for peak conditions, install correctly, and maintain regularly.
If you're seeing the signs of poor drainage in your garden — pooling water, yellowing plants, muddy soil, or moss growth — don't wait for the problem to worsen. Professional garden drainage solutions in Oman are significantly less expensive than repairing the damage poor drainage eventually causes. Your garden, and your villa, will thank you for acting early.
